JDH 6.22

Seismic floor expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

COLOUR :

natural

VERSION :

flat and angle

CHARACTERISTICS :

  • Seismic expansion joint
  • For wide movements : 50 %
  • For joint gaps from 50 to 200 mm

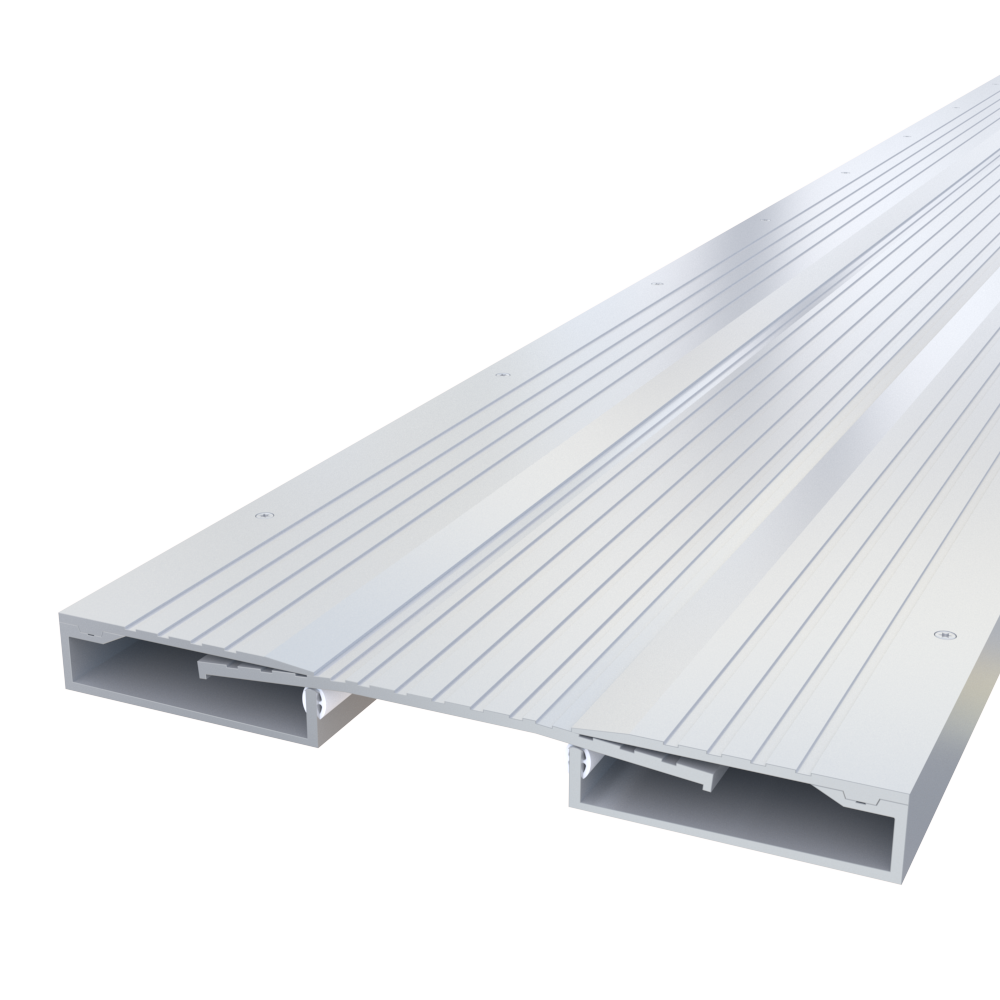

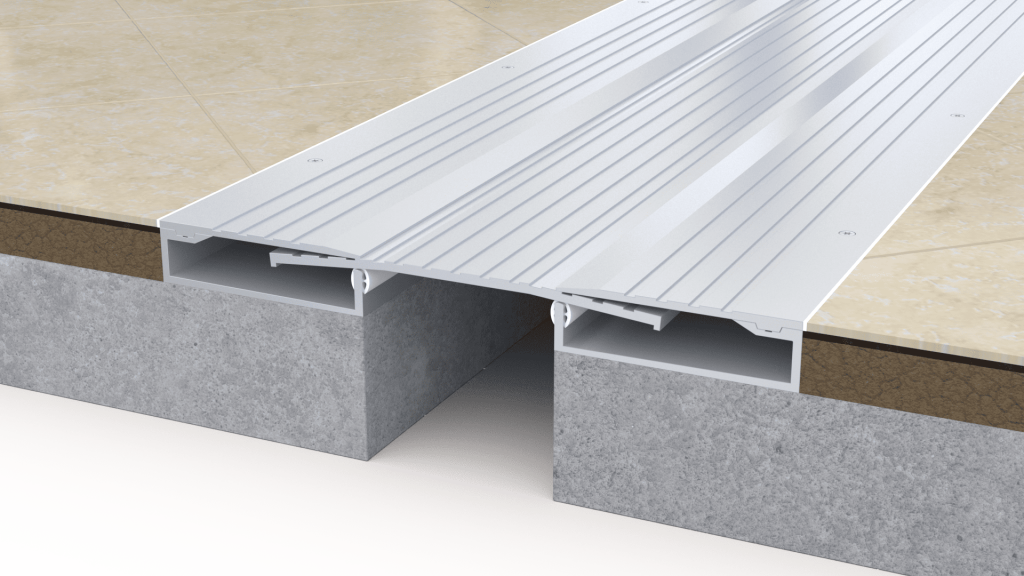

  • Seismic expansion joint for wide seismic movements that comprises side angle sections and a central plate made of aluminium. It is able to take up large expansion and contraction movements, as well as vertical shearing movements, and is also suitable for all types of finish: concrete, screed, tiling, etc. The JDH 6.22 seismic expansion joint and fire stop expansion joint can be used for indoor and outdoor floor joints where a gap of up to 200 mm, with significant movement, is present. It is suitable for pedestrian and light trolley traffic. The JDH 6.22 seismic expansion joint comes in 3m section lengths, and features aluminium side angle sections and middle plate. VEDA’s JDH 6.22 range includes floor-to-floor (JDH 6.22) and floor-to-wall (JDH 6.22A) versions, with anti-slip ribbed surfaces. Optional waterproof membranes, with the potential to integrate a drainage system to recover liquid, are also available. Moreover, the JDH 6.22 seismic expansion joint range can be used in association with vertical joints that offer the same finish and movement range (type JDV 4.02 or other).

    BIM File

    REFERENCES
    JDH 6.22
    6.22-0506.22-1006.22-1506.22-2006.22-050 A6.22-100 A6.22-150 A6.22-200 A
    OPENING (MM)
    W
    5010015020050100150200
    MOVEMENTS (MM)-150 / - 5075 / - 75100 / - 10025 / - 2550 / - 5075 / - 75100 / - 100
    VISIBLE WIDTH (MM)
    S
    170250320420125210305408
    TOTAL WIDTH (MM)
    B
    170250320420125210305408
    HEIGHT (MM)
    H
    2727272727272727
    CHARGESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
