JDH 6.14

All-metal floor expansion joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium

COLOUR :

natural

VERSION :

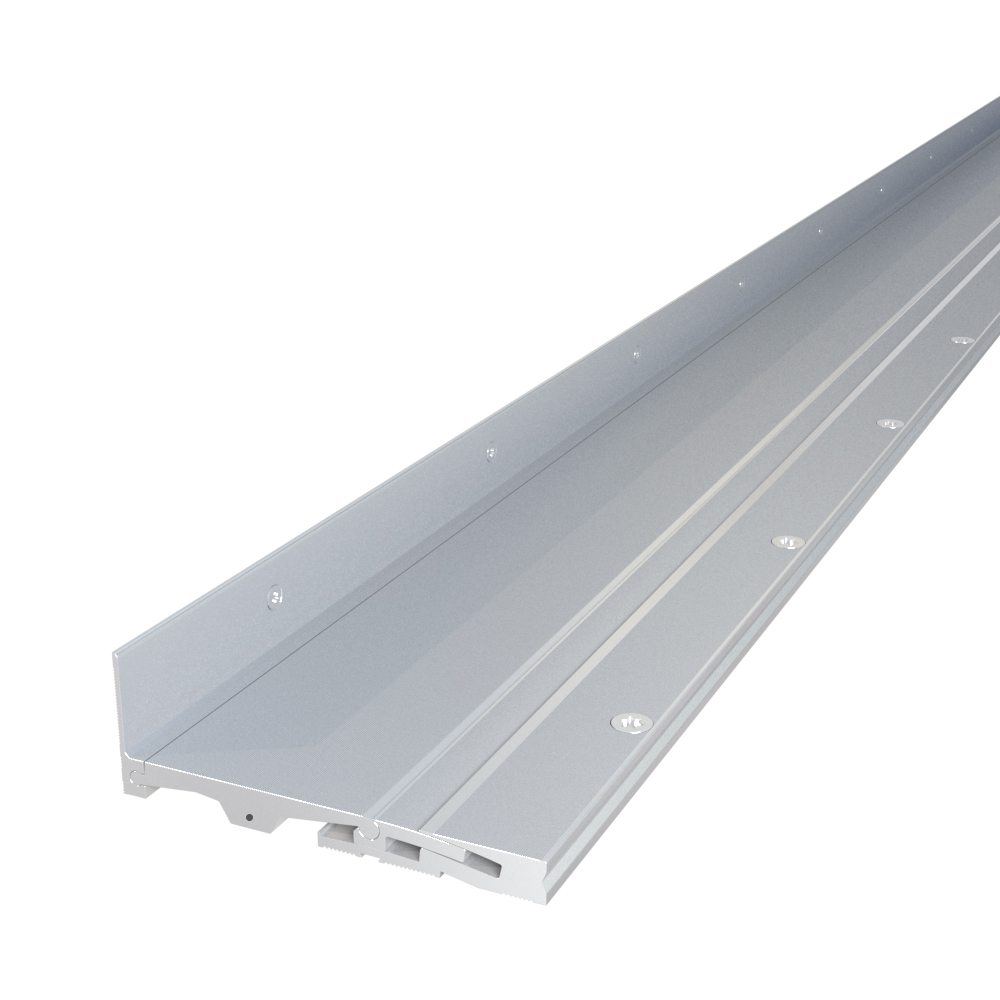

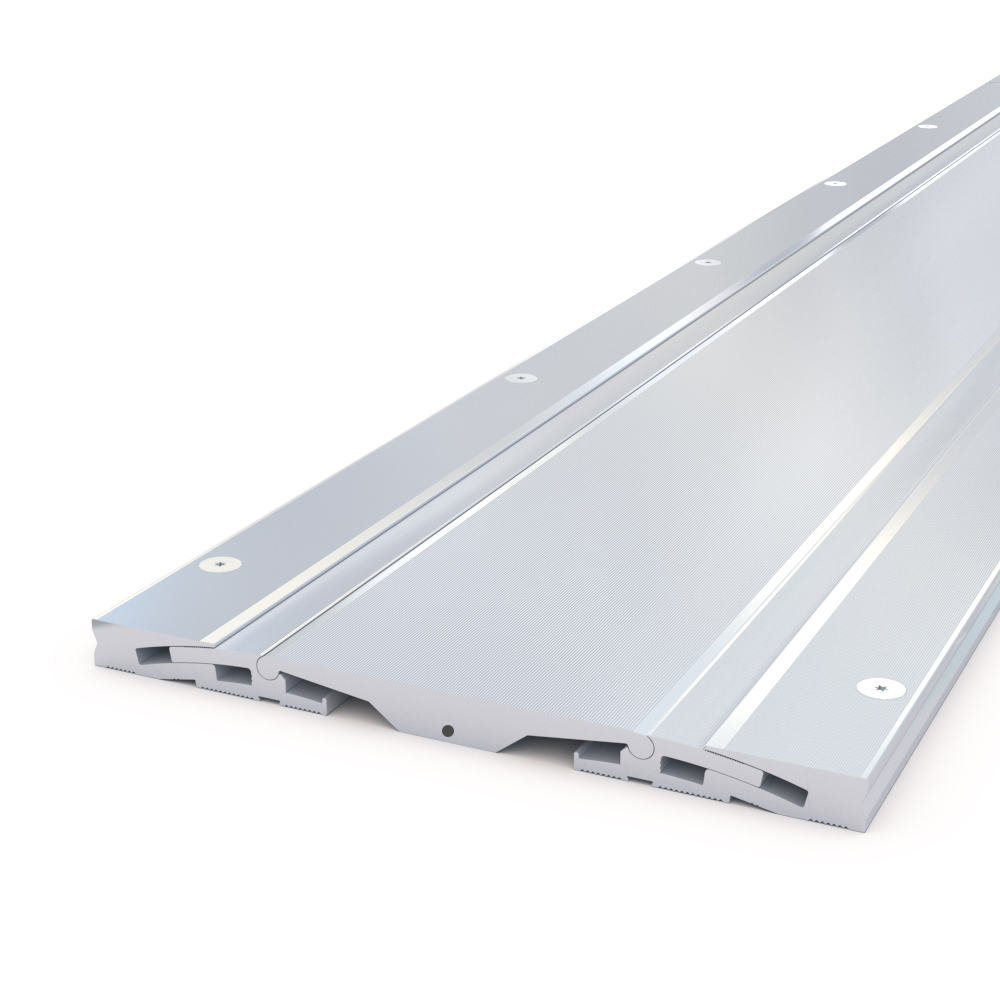

flat and angle

CHARACTERISTICS :

  • Reinforced seismic expansion joint
  • For intensive heavy-duty traffic
  • For joint gaps from 50 to 200 mm
  • All-metal floor expansion joint specially designed to withstand heavy loads: load handling equipment, lorries... Suitable for indoor and outdoor applications. The central elements allow significant expansion and contraction movements, as well as vertical shearing movements. Suitable for all types of finish: concrete, screed, tiling, etc. For indoor and outdoor floor joints with a gap up to 200 mm, with large amount of movements and heavy loads. Suitable for heavy traffic of fork-lift truck on solid tyres (Vulkollan), loads of up to 6 tonnes/axle on pneumatic tyres, lorries, pallet trucks and intense traffic of light vehicles. Section length of 3 m. Aluminium side angle sections, pre-drilled. Floor-to-floor and floor-to-wall types. Anti-slip ribbed surface. This product is supplied ready to install, with spacers that must be removed after installation on the floor.

    BIM File

    CCTP Specifications

    REFERENCES
    JDH 6.14
    6.14-0506.14-1006.14-1506.14-200
    OPENING (MM)
    W
    50100150200
    MOVEMENTS (MM)± 30± 30± 30± 30
    VISIBLE WIDTH (MM)
    S
    260310360410
    TOTAL WIDTH (MM)
    B
    260310360410
    HEIGHT (MM)
    H
    20202020
    CHARGESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
