JDH 5.35

Car park joint

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge

Load

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

rubber

steel

COLOUR :

black

VERSION :

FLAT

CHARACTERISTICS :

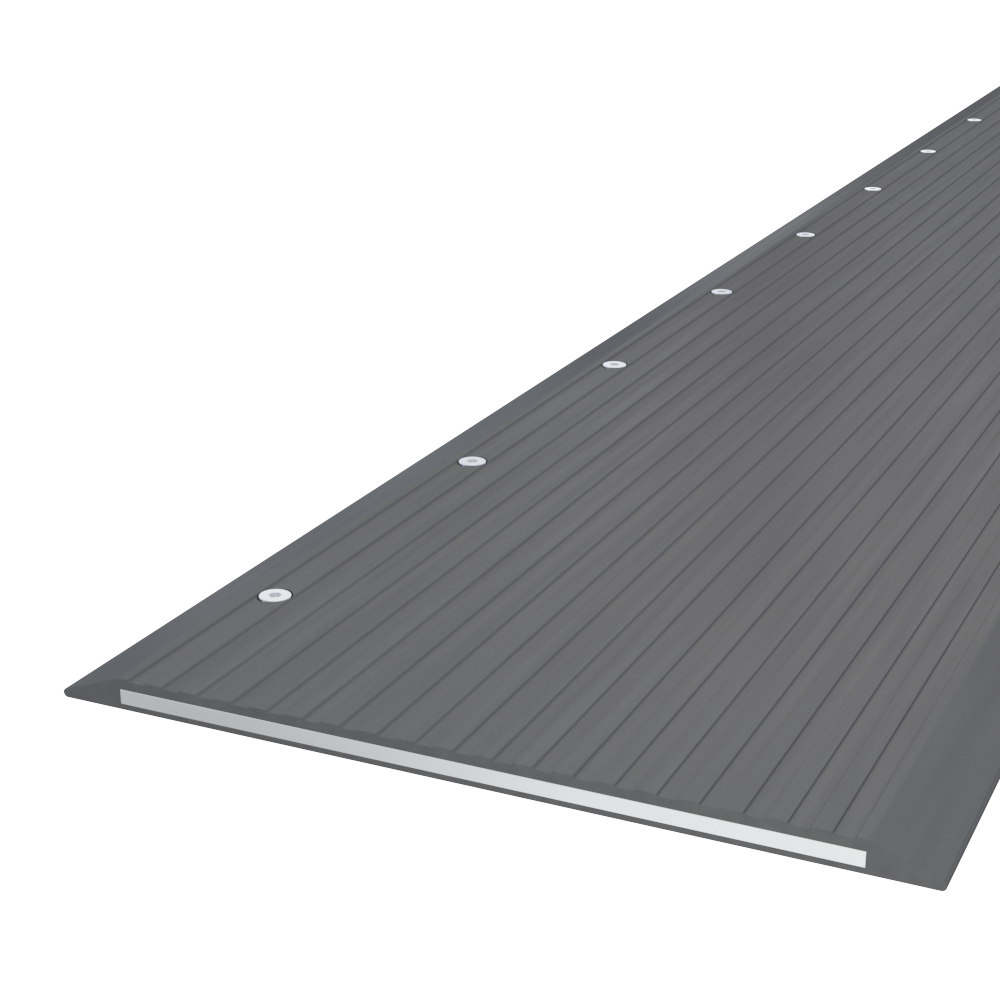

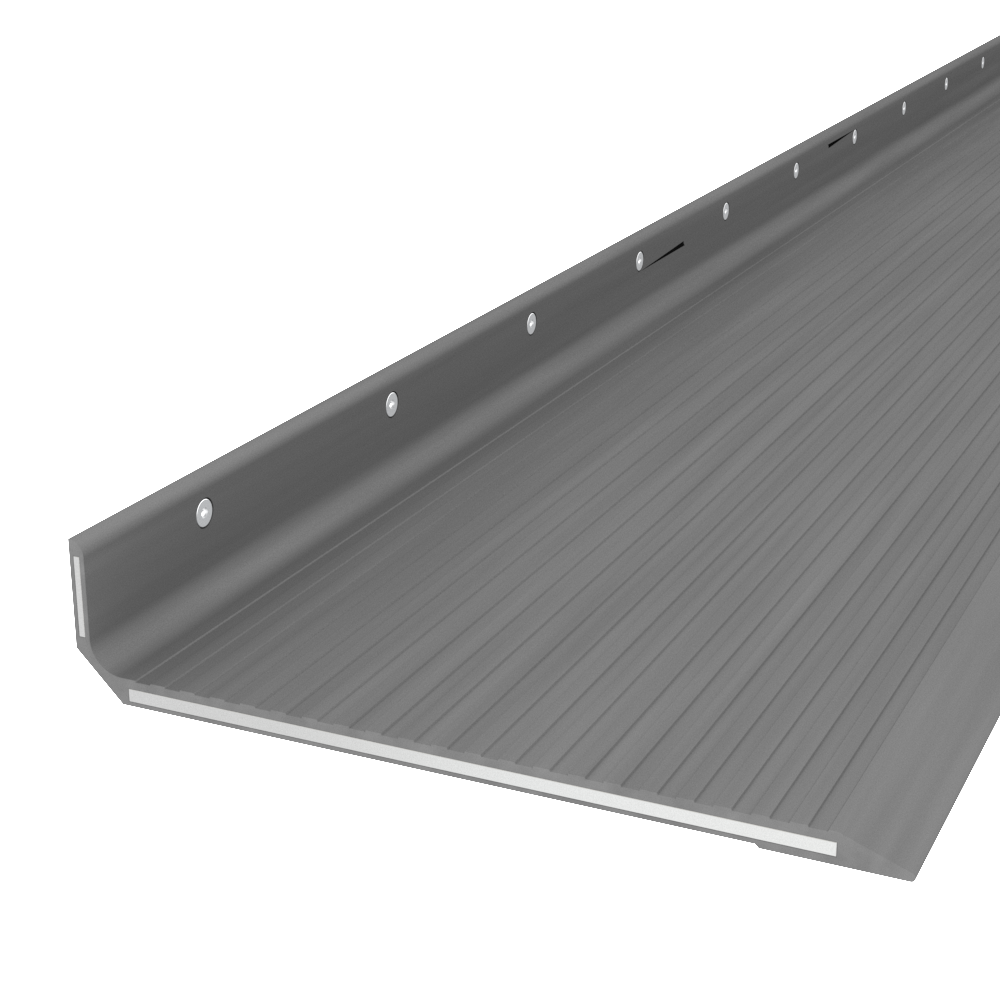

  • Floor expansion joint for car parks
  • For openings from 100 to 600 mm
  • Reinforced with a thick steel plate and rubber finish
  • Floor expansion joint for car parks and any other place with or without traffic of slow vehicles. Different widths available, for gaps for 100 to 600mm.
    Extra-thick steel plate reinforcement to withstand intensive vehicular traffic and rubber finish for shock-noise reduction due to vehicle traffic.
    REFERENCES
    JDH 5.35
    5.35-1005.35-2005.35-4005.35-600
    GAP UP TO (MM)
    W
    100200400600
    MOVEMENTS (MM)+50/-100+100/-200+200/-400+200/-600
    VISIBLE WIDTH (MM)
    S
    300450750900
    TOTAL WIDTH (MM)
    B
    300450750900
    HEIGHT (MM)
    H
    12171921
    LOAD-BEARING CAPACITIESVeda France icônes chargeVeda France icônes chargeVeda France icônes chargeVeda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
