JDH 5.25

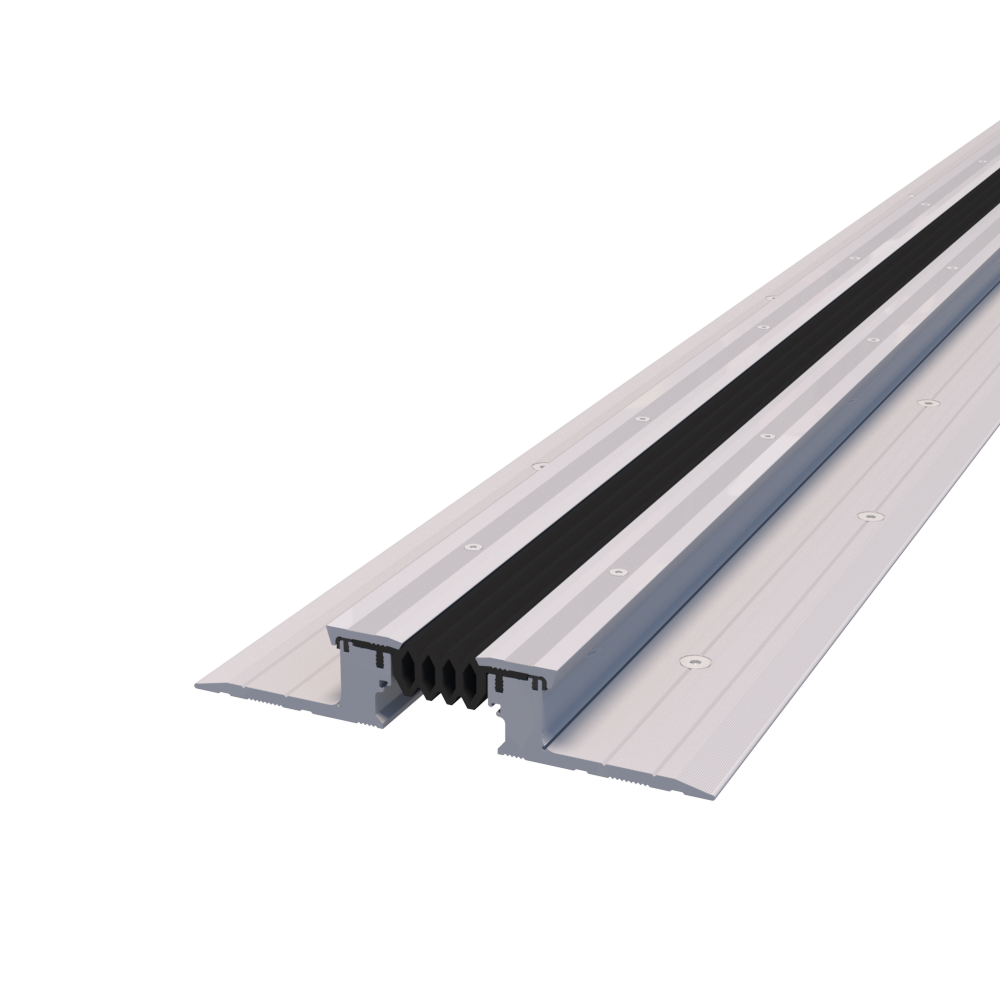

Watertight floor expansion joint JDH 5.25

Product compatible with our fire protection solutions and our waterproofing membranes

Veda France icône charge rupture

Tensile Strenght

Veda France icône environnement

Environment

Veda France icône mouvement

Movement

MATERIAL :

aluminium, acier inoxydable, nitrile

COLOUR :

noir

VERSION :

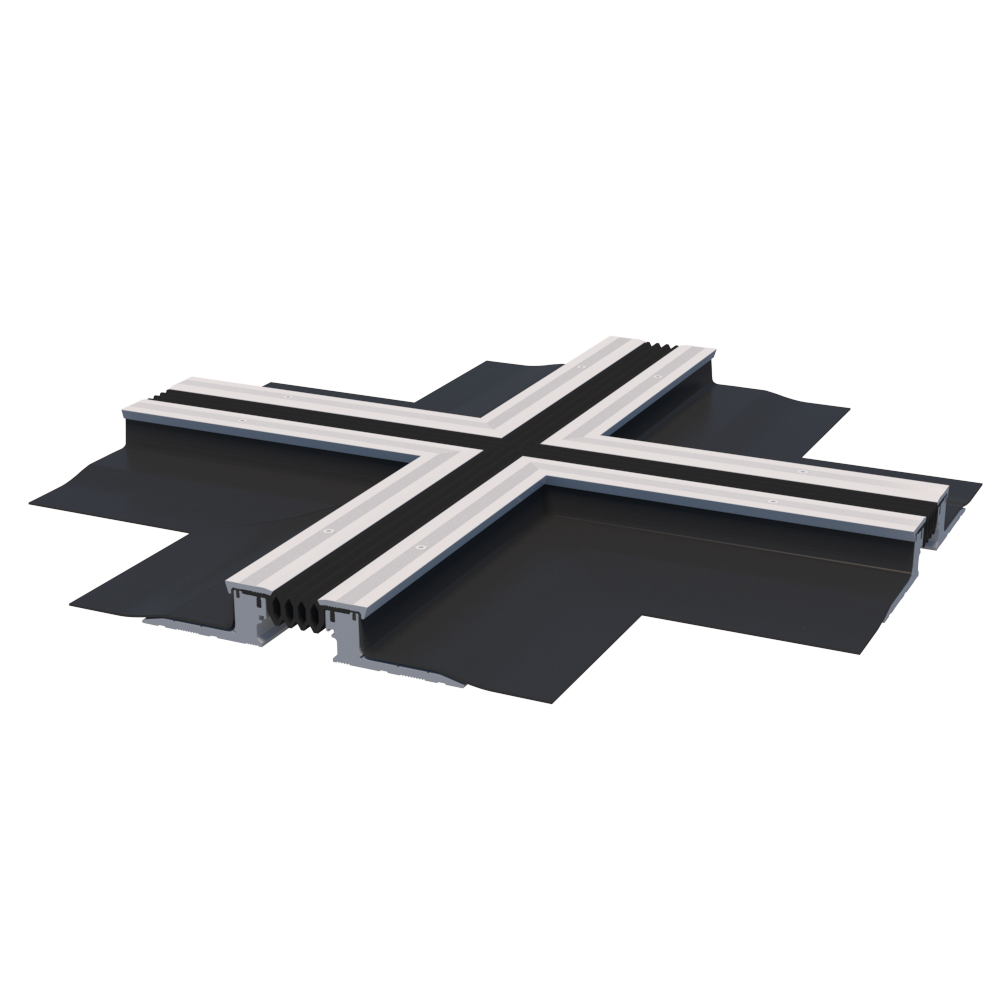

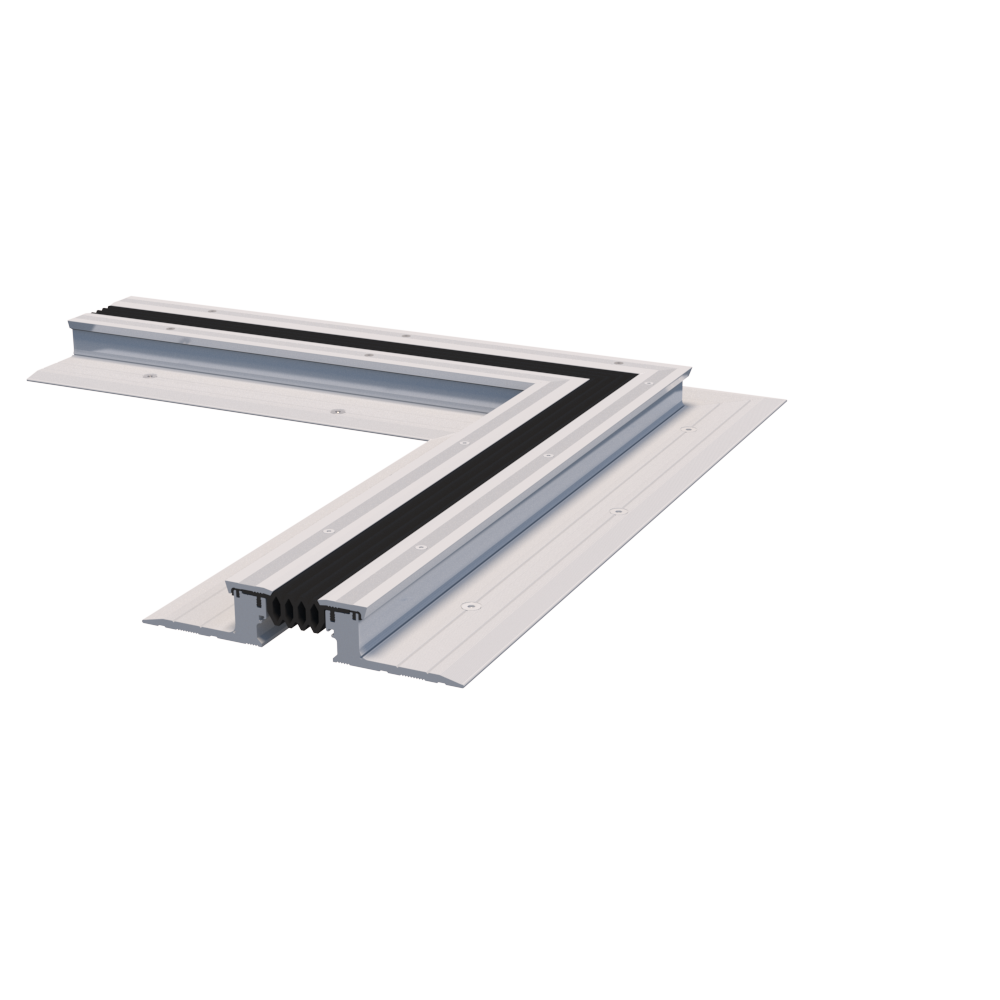

flat and angle

CHARACTERISTICS :

  • Expansion joint 100% watertight, especially suitable for car roof
  • Stainless steel or aluminium protection

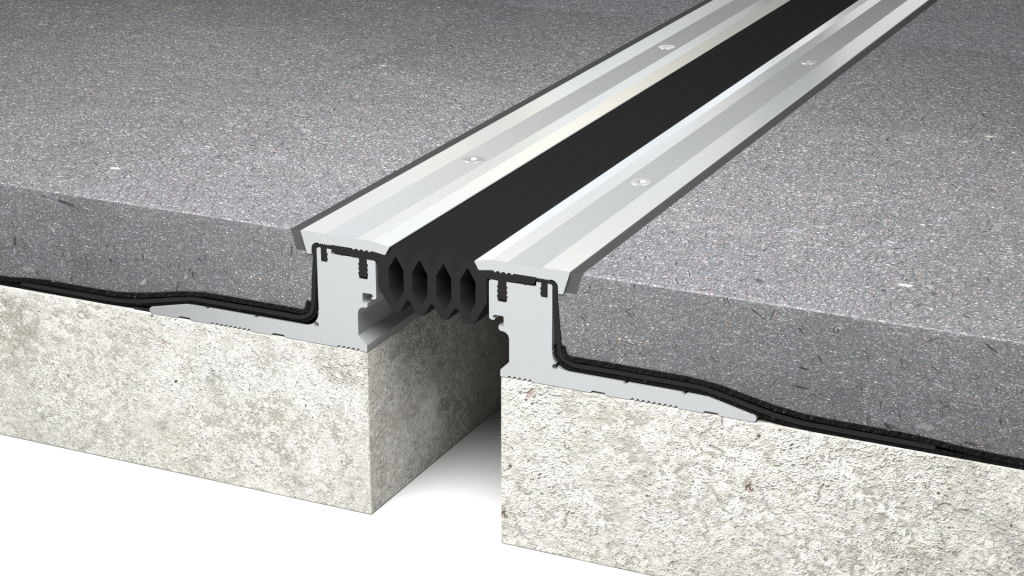

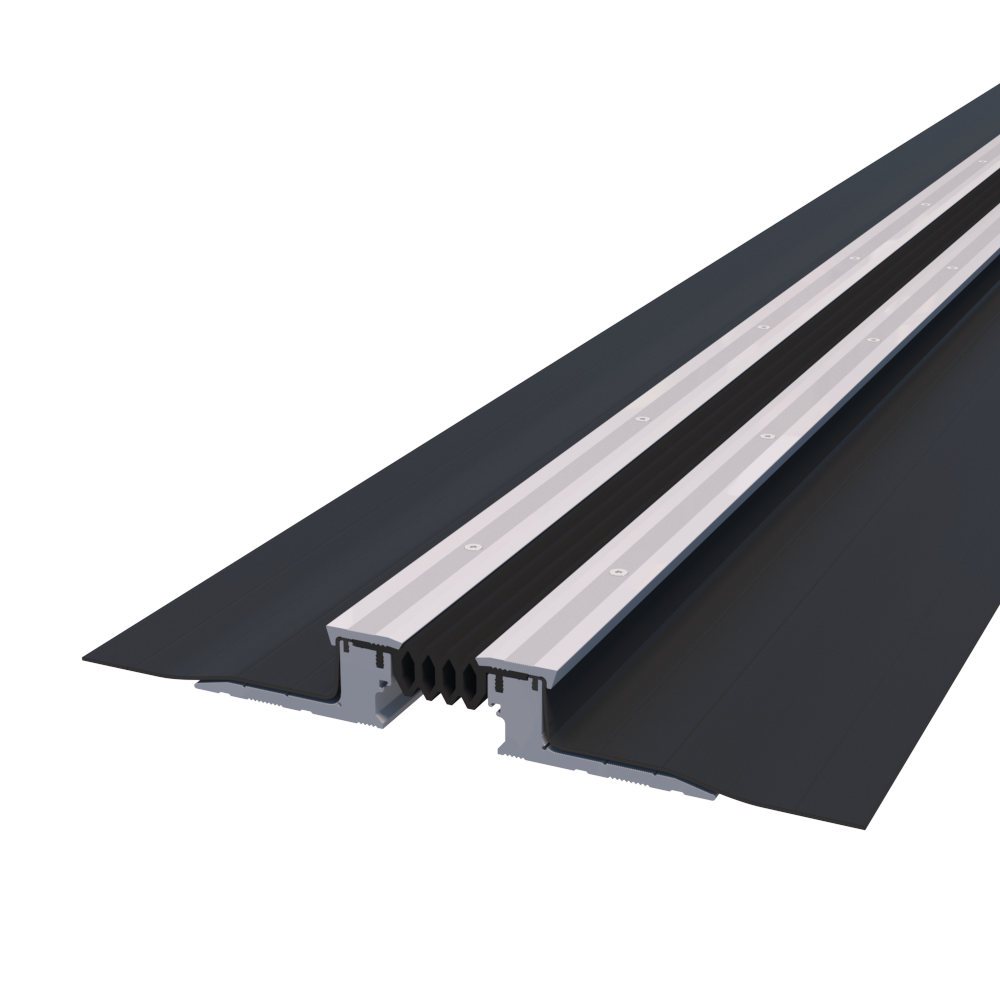

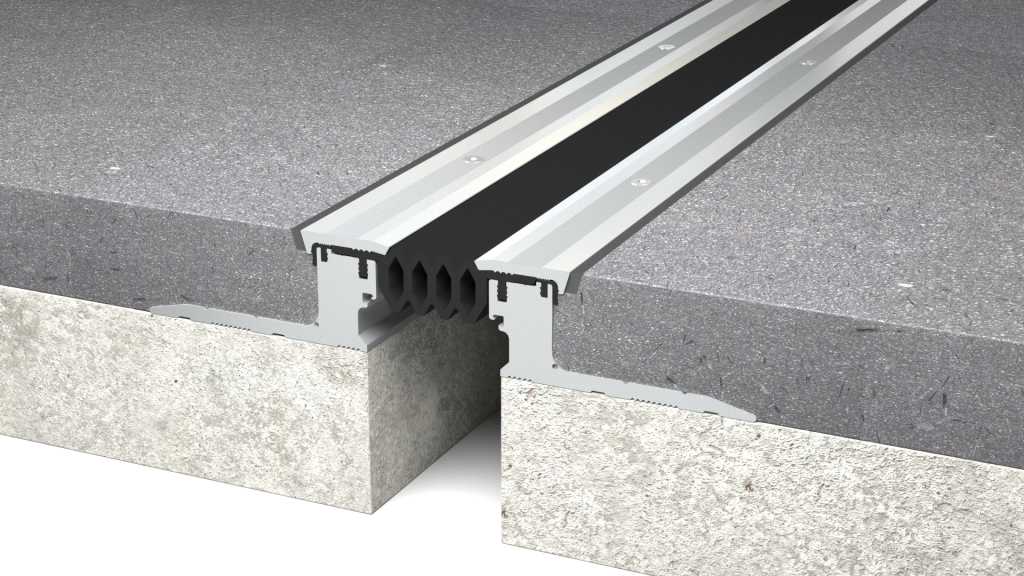

  • Watertight floor expansion joint specially recommended for carparks. Stainless steel or aluminium protection, very good protection, very good resistance to intensive light vehicles traffic. Very resistant to chemicals and petrol. Specially designed for multistorey and underground exterior and interior carparks, ramps, podium, pedestrian bridges, etc. Weldable insert. Available with short or long wings.

    BIM File

    CCTP Specifications

    REFERENCES
    JDH 5.25
    5.25 A-0605.25 A-1105.25-0605.25-110
    OPENING (MM)
    W
    6011060110
    MOVEMENTS (MM)-1-1-1-1
    VISIBLE WIDTH (MM)
    S
    87137123173
    TOTAL WIDTH (MM)
    B
    167217280330
    HEIGHT (MM)
    H
    30 / 5030 / 5030 / 5030 / 50
    CHARGES Veda France icônes charge Veda France icônes charge Veda France icônes charge Veda France icônes charge
    slide to see more

    The load capacity is always given for a joint in its initial position. In case of opening movements, the load capacity is strongly reduced and the product will only be suitable for light pedestrian traffic. The indicated load values are based on vehicles with pneumatic wheels with a contact area of 200x200 mm.
